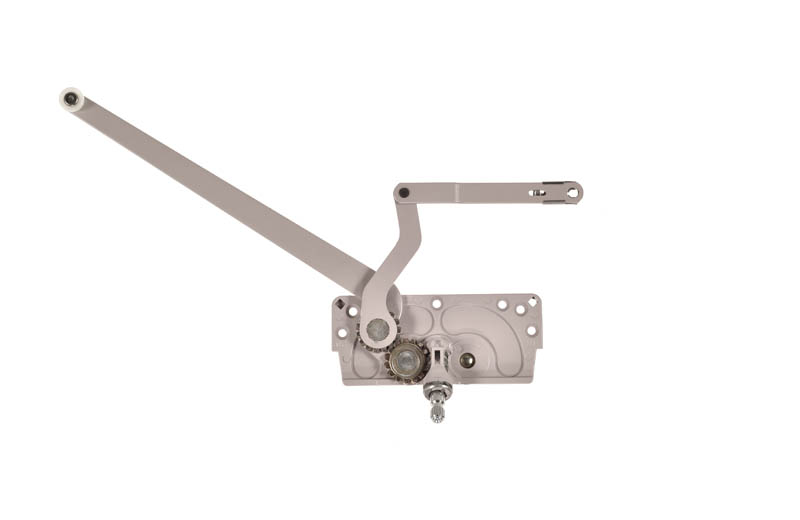

Truth Hardware Dual Arm Left Hand EntryGard 4 - 7/16" (Down Link Reverse Clip)
[15.73.00.201]The 15 Series Truth Hardware EntryGard Operators have a high-pressure die-cast zinc base that is E-Gard coated. The gears and drive worm are made of hardened steel. The #15.73 Dual Arm Operators are designed for windows 20" to 32" wide up to 60" high with a maximum sash weight of 60 lbs. when used with the proper 14 Series Casement Hinges.
The EntryGard dual arm action of both arms working together pushes the window out as it draws the corner of the hinged side of the sash away from the jamb. This Truth Hardware Dual Arm Left Hand Entrygard casement window operator is used by several window manufacturers.
For additional assistance with installation or tips on choosing the right part, always refer to the product specifications documentation.
Handing is determined by the hinge side when viewed from the EXTERIOR.
